How to Configure Cisco Router and Switch Clients Can Access to VLAN Plan

To configure a Cisco Packet Tracer project where a router connects to a switch with two VLANs (VLAN10 and VLAN20), and each VLAN has its subnet, follow these steps:

Network Design:

1. Router:

• Interface: gi0/0 connected to the switch.
• Sub-interfaces configured for each VLAN with IP addresses for inter-VLAN routing.

1. Switch:

• VLAN10 and VLAN20 created.
• Ports assigned to each VLAN for devices on each subnet.
• The port connected to the router set as a trunk.

Step-by-Step Configuration:

1. Configure VLANs on the Switch

1. Access the Switch CLI:

   Switch> enable
   Switch# configure terminal
   Switch(config)#hostname Howtokh-S

2. Create VLAN10 and VLAN20:

   Howtokh-S(config)# vlan 10
   Howtokh-S(config-vlan)# name VLAN10
   Howtokh-S(config-vlan)# exit

   Howtokh-S(config)# vlan 20
   Howtokh-S(config-vlan)# name VLAN20
   Howtokh-S(config-vlan)# exit

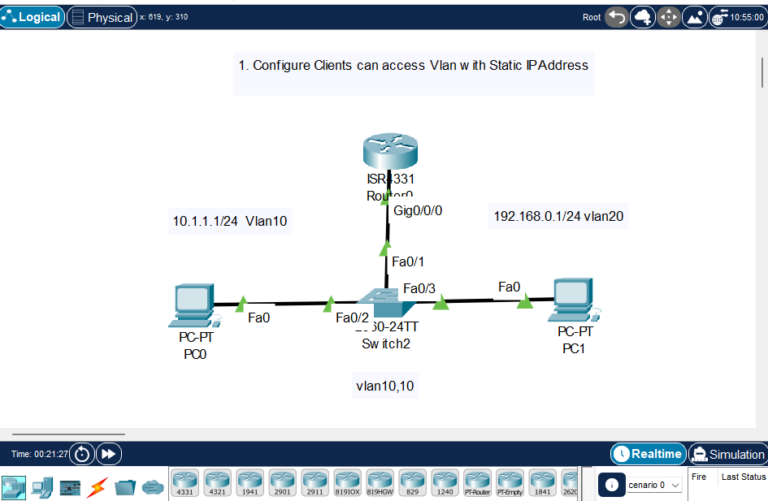

Example as below:

3. Assign Ports to VLANs (assuming you have two clients, one for each VLAN):

   Howtokh-S(config)# interface fa0/1
   Howtokh-S(config-if)# switchport mode access
   Howtokh-S(config-if)# switchport access vlan 10
   Howtokh-S(config-if)#no shutdown
   Howtokh-S(config-if)#do wr
   Howtokh-S(config-if)# exit

   Howtokh-S(config)# interface fa0/2
   Howtokh-S(config-if)# switchport mode access
   Howtokh-S(config-if)# switchport access vlan 20
   Howtokh-S(config-if)#no shutdown
   Howtokh-S(config-if)#do wr
   Howtokh-S(config-if)# exit

4. Configure Trunk Port on the switch to connect to the router:

   Howtokh-S(config)# interface gi0/1
   Howtokh-S(config-if)# switchport mode trunk
   Howtokh-S(config-if)#no shutdown
   Howtokh-S(config-if)#do wr
   Howtokh-S(config-if)# exit

Save all configuration

Howtokh-S#copy running-config startup-config

2. Configure the Router

1. Access the Router CLI:

   Router> enable
   Router# configure terminal
   Router(config)#hostname Howtokh-R

2. Configure Sub-interfaces for Each VLAN:

• On the router’s gi0/0 interface, create sub-interfaces for VLAN10 and VLAN20. Assign IP addresses to the sub-interfaces. Encapsulate each sub-interface with the appropriate VLAN ID.

   Howtokh-R(config)# interface gi0/0.10
   Howtokh-R(config-subif)# encapsulation dot1Q 10
   Howtokh-R(config-subif)# ip address 10.1.1.1 255.255.255.0
   Howtokh-R(config-subif)#description Vlan10
   Howtokh-R(config-subif)# do wr
   Howtokh-R(config-subif)# exit

   Howtokh-R(config)# interface gi0/0.20
   Howtokh-R(config-subif)# encapsulation dot1Q 20
   Howtokh-R(config-subif)# ip address 192.168.0.1 255.255.255.0
   Howtokh-R(config-subif)#description Vlan20
   Howtokh-R(config-subif)# do wr
   Howtokh-R(config-subif)# exit

3. Enable the Router Interface:

   Howtokh-R(config)# interface gi0/0
   Howtokh-R(config-if)# no shutdown
   Howtokh-R(config-if)# exit

3. Configure Static IP for Clients

• Connect a PC to fa0/1 for VLAN10 and another PC to fa0/2 for VLAN20.

1. PC in VLAN10: Assign IP Address to PC

• IP Address: 10.1.1.X (e.g., 10.1.1.10)
• Subnet Mask: 255.255.255.0
• Default Gateway: 10.1.1.1

Cisco Business CBS220-8P-E-2G Smart Switch | 8 Port GE | PoE

Cisco Business CBS110-8PP-D Unmanaged Switch | 8 Port GE | Partial PoE | Desktop | Ext PS | Limited Lifetime Protection (CBS110-8PP-D-NA)

1. PC in VLAN20:

For the PC2 in VLAN20, you can follow steps 1 in VLAN10

• IP Address: 192.168.0.X (e.g., 192.168.0.10)
• Subnet Mask: 255.255.255.0
• Default Gateway: 192.168.0.1

4. Test Connectivity

• Use the ping command from each PC to test connectivity with its VLAN gateway.
• Ensure PCs in VLAN10 and VLAN20 cannot communicate directly. They should reach the router’s respective sub-interface IP addresses for inter-VLAN routing, if configured.

After assigning the IP Address you should ping test to make sure it working or not

This setup enables clients in VLAN10 and VLAN20 to access their designated networks with static IP addresses. You can now ping as well. Learn more…
