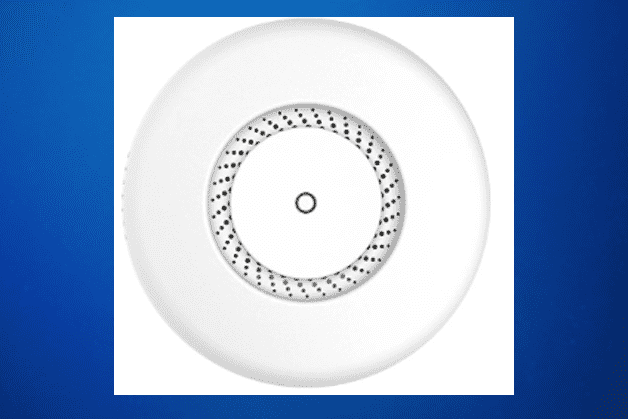

The MikroTik cAP ac is a sleek, dual-band access point. It can be mounted on the ceiling or wall. It’s designed for professional environments that require reliable and discreet wireless coverage. Its compact form factor offers excellent performance. It is ideal for offices, hospitality venues, and even small server rooms where consistent connectivity is essential.
🔑 Key Features
- Dual-Band Wi-Fi: Supports simultaneous 2.4 GHz (802.11b/g/n) and 5 GHz (802.11a/n/ac) frequencies, delivering up to 300 Mbps and 867 Mbps respectively
- 360° Coverage: Engineered for unidirectional signal distribution, ensuring uniform coverage in open spaces
- Flexible Mounting: Includes both round and square enclosures, allowing for aesthetic integration into various interior designs
- PoE Support: Features 802.3af/at PoE input and passive PoE output, simplifying installation and powering additional devices
- RouterOS Capabilities: Equipped with RouterOS Level 4 license, offering advanced networking features such as VLANs, firewalls, and hotshot configurations
📊 Specifications
| Component | Details |
|---|---|
| CPU | IPQ-4018 Quad-Core (488–896 MHz) |
| RAM | 128 MB |
| Storage | 16 MB Flash |
| Operating System | RouterOS Level 4 |
| Dimensions | Round: ⌀136 mm x 30 mm; Square: 145 mm x 145 mm x 30 mm |
| MTBF | ~100,000 hours at 25°C |
📡 Wireless Capabilities
| Band | Standards | Max Data Rate | Antenna Gain |
|---|---|---|---|
| 2.4 GHz | 802.11b/g/n | 300 Mbps | 2 dBi |
| 5 GHz | 802.11a/n/ac | 867 Mbps | 2.5 dBi |
🌐 Ethernet & Ports
| Port Type | Details |
|---|---|
| Ethernet | 2 x Gigabit Ethernet ports |
| PoE Input | 802.3af/at (17–57 V) |
| PoE Output | Passive PoE on Ether2 (up to 57 V) |
🔌 Powering Detals
| Power Input | Details |
|---|---|
| DC Input | Via PoE (802.3af/at or passive) |
| Max Power Consumption | 24 W (with attachments), 12 W (without) |
🧰 Ideal Use Cases
- Office Environments: Provides reliable wireless coverage for employees and deices.
- Hospitality Venus: Ensures seamless connectivity for guests in hotels, restaurants, and conference centers.
- Educational Institutions: Supports high-density user environments like classrooms and lecture halls.
- Small Server Roost: Offers stable wireless access for monitoring and management purposes.
The MikroTik cAP ac is versatile and cost-effective. It offers advanced networking capabilities. The device comes in a compact form. Its dual-band Wi-Fi, PoE support, and robust hardware make it a reliable choice for both home and professional environments. Beginners may find it has a steep learning curve. However, its performance and feature set offer significant value for the price point.
📦 Available for purchase on Amazon: MikroTik cAP ac on Amazon
