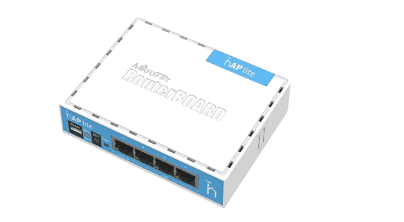

The MikroTik hAP lite, Router + Wireless

MikroTik hAP lite (RB941-2nD) is a compact and budget-friendly wireless access point designed for small apartments, homes, or offices. Despite its small size, it offers reliable performance and essential features suitable for basic networking needs.

🔧 Key Features

• Compact Design: Ideal for environments with limited space
• User-Friendly: Easy to set up and manage, even for those new to networking
• Reliable Performance: Suitable for everyday tasks like browsing, streaming, and connecting multiple devices
• RouterOS Level 4 License: Provides advanced features such as bandwidth management, firewall configurations, and user access control

📊 Specifications

Feature	Details
CPU	650 MHz QCA9533
RAM	32 MB
Storage	16 MB FLASH
Operating System	RouterOS Level 4
Wireless Standards	802.11b/g/n (2.4 GHz, dual-chain)
Max Wireless Data Rate	300 Mbps
Ethernet Ports	4 x Fast Ethernet (10/100 Mbps)
Power Input	5V via MicroUSB
Max Power Consumption	3.5 W
Dimensions	113 x 89 x 28 mm
Operating Temperature	-20°C to 60°C
Certifications	FCC, IC

📶 Wireless Capabilities

• *Frequency Band: 2.4 Hz
• *Antenna Gain: 1.5 Bi
• *Wi-Fi Generation: Wi-F 4
• *Transmit Power: Up to 22 Bm

🔌 Powering Details

• Power Input 5V via MicrOS
• Power Consumption Maximum of 35 W
• Cooling Passive cooling system

🛒 Where to buy

The MikroTik hAP lite (RB941-2nD) is available for purchase on Amazon, offering convenience and fast shipping options.

The MikroTik hAP lite (RB941-2nD) is an excellent choice for individuals. It is also ideal for small businesses seeking an affordable and reliable wireless access pit. Its combination of essential features, ease of use, and compact design makes it a practical solution for basic networking needs.

Here’s a complete user guide for the MikroTik hAP ac lite US Version (RB952Ui-5ac2nD-TC). It includes an introduction, a practical step-by-step setup guide, and a conclusion. This guide assumes you are setting it up for home or small-office use.

Guide to Using the MikroTik hAP ac lite

The MikroTik hAP ac lite (RB952Ui-5ac2nD-TC) is a versatile and compact dual-band router designed for home and small-office networking needs. It features simultaneous 2.4GHz and 5GHz wireless. It also includes five Ethernet ports and MikroTik’s powerful RouterOS software (License Level 4). This router offers a flexible and affordable solution for creating a reliable WiFi network.

This guide will walk you through the essential steps to set up and use your hAP ac lite. It is suitable whether you’re a beginner or an intermediate user. You’ll learn how to power it, access it, configure wireless settings, and connect devices.

Step-by-Step Guide

1. Unboxing and Physical Setup

Included in the box:

• hAP ac lite unit (RB952Ui-5ac2nD-TC, US Version)
• 24V power adapter
• Desktop stand or wall-mount kit
• Quick start guide

Placement Options:

• Desktop mode: Use the stand for horizontal or vertical positioning.
• Wall mount: Use the included wall anchor kit if needed.
• Tip: Place it centrally in your home for the best WiFi coverage.

2. Powering the Device

You have two powering options:

• DC jack (24V adapter included) — plug into a wall socket.
• Passive PoE in (on Ether1) — can be powered via Ethernet cable from a compatible injector.

You can power another device via PoE-out on port Ether5. It can be an IP camera or another access point. The maximum power is 500 mA. Make sure the connected device supports passive PoE.

3. Initial Connection (Accessing RouterOS)

Via Ethernet:

1. Connect your computer to any of the Ethernet ports (except Ether1 if using PoE-in).
2. Open your browser and go to: http://192.168.88.1
3. Default login:
   • Username: admin
   • Password: (leave blank)
     (You’ll be prompted to set a new password on first login.)

Via Winbox (Windows tool):

• Download Winbox from MikroTik’s official site.
• Connect via MAC address (shown on the bottom label).
• Winbox can access the router even before IP setup.

4. Quick Wireless Setup (Home Use)

If you don’t need advanced configuration, follow these steps:

Using WebFig (Web Interface):

1. Navigate to the “Quick Set” tab.
2. Select Home AP Dual as the mode.
3. Configure:
   • SSID (for both 2.4GHz and 5GHz)
   • WiFi Password (use WPA2)
   • Router Password (to secure the admin interface)
   • Internet Connection Type (typically DHCP if plugging into a modem)
4. Click Apply Configuration.

Your WiFi network should now be active!

5. Connecting Devices

After setup:

• Use your phone, laptop, or smart device to connect to the WiFi SSID you set.
• Enter the password you created.

You now have both 2.4GHz and 5GHz WiFi available:

• 2.4GHz: Longer range, better penetration.
• 5GHz: Higher speed, shorter range (ideal for streaming or gaming near the router).

6. Optional: USB 3G/4G Modem Setup

You can plug a supported USB 3G/4G modem into the USB-A port. Use it as a backup WAN connection. You can also use it as a primary WAN connection.

To configure:

1. Plug in the modem.
2. Go to Interfaces > LTE (if recognized).
3. Configure APN and authentication if needed.

7. Maintenance Tips

• Firmware Updates: Regularly check for updates via System > Packages > Check for Updates.
• Backup: Save a backup config via Files > Backup.
• Monitoring: Use Graphs or Tools > Torch to monitor traffic and bandwidth.

Conclusion

The MikroTik hAP ac lite (RB952Ui-5ac2nD-TC) is a powerful yet budget-friendly router and access point that combines flexibility with performance. It is ideal for most home and small-office users. It provides dual-band WiFi, passive PoE functionality, and advanced RouterOS features. These are all in a compact, easy-to-place design.

Whether you’re just setting up a reliable home network, the hAP ac lite is a dependable choice. If you’re exploring MikroTik’s rich configuration options, it remains reliable. It grows with your networking needs.
